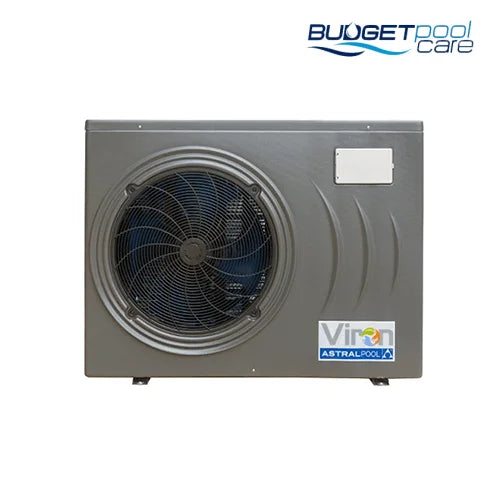

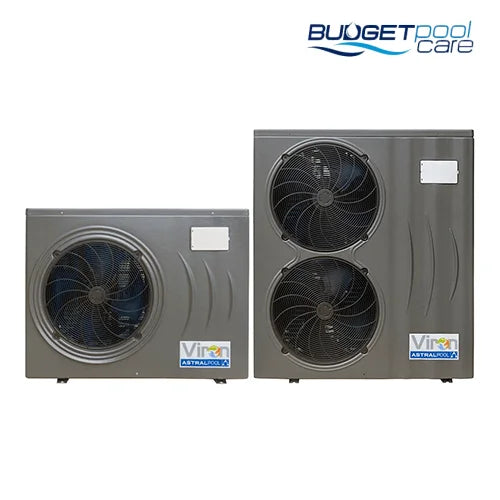

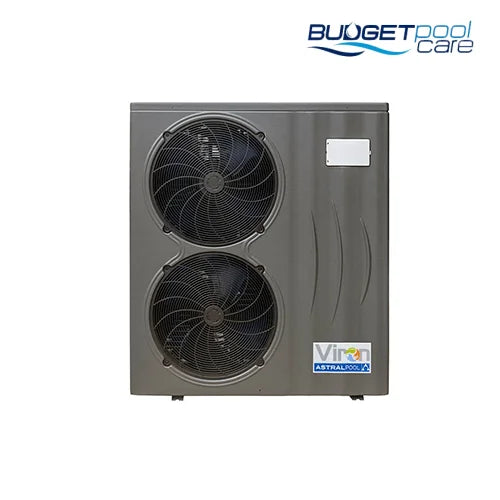

Viron Inverter Heat Pump
Astral Pool Viron Inverter Heater Pumps
The Viron Inverter Heat Pump range uses R32 Gas Refrigerant and inverter technology which offers higher efficiency and longer pipe runs and requires less refrigerant volume per kW. This means quicker heating times and less energy used to heat your pool and reduce electricity consumption.
With the included WiFi module, you can control the heater on the go with your smartphone. Monitor and set your pool's temperature even if you're away on a business trip or holiday through your home's WiFi. With the AquaTemp app, your pool temperature will always be right at your fingertips wherever you are!
Features
- Environmentally friendly
- Wi-Fi module included
- Whisper quiet with silent mode
- Super Efficient
- Low operating Costs
- Easy intuitive control of settings
Specifications
| Model No. | Viron iHP90 | Viron iHP120 | Viron iHP170 | Viron iHP195 | Viron iHP242 | Viron iHP283 |
|---|---|---|---|---|---|---|
| Technology | ||||||
| AquaTemp app | Yes | Yes | Yes | Yes | Yes | Yes |
| Pool Coverage | ||||||
| Heating capacity | 2.15~9 | 2.85~12 | 3.77~17 | 4.6~19.5 | 5.7~24.2 | 6.7~28.3 |
| Water flow volume | 53.33 L/m | 70 L/m | 88.33 L/m | 111 L/m | 143.33 L/m | 166.67 L/m |
| Programming | ||||||
| Viron Connect compatible | No | No | No | Yes | Yes | Yes |
| Wifi module included | Yes | Yes | Yes | Yes | Yes | Yes |
| Equipment | ||||||
| Input power | 0.16~1.6 | 0.21~2.12 | 0.3~3.02 | 0.37~3.94 | 0.46~4.8 | 0.54~5.57 |
| Water pressure drop (max) Kpa | 4 | 4.5 | 5 | 6 | 11 | 15 |
| Water connection | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Sound pressure 1M Db(A) | 40-50 | 42-52 | 44-53 | 45-56 | 46-57 | 48-58 |
| Power | 10A Cable with plug | 15A Cable with plug | Single Phase | Single Phase | Single Phase | Triple Phase |
| Voltage/phases/frequency | 220-240V~/1Ph | 220-240V~/1Ph | 220-240V~/1Ph | 220-240V~/1Ph | 220-240V~/1Ph | 380-415V/3Ph |
| Running current | 0.69-6.9 Amp | 0.9-9.2 Amp | 1.3-13.1 Amp | 1.6-17.1 Amp | 2.0-20.8 Amp | 1.1-9.3 Amp |
| Refrigerant type | R32 | R32 | R32 | R32 | R32 | R32 |
| COP | 13.44~5.63 | 13.57~5.66 | 12.57~5.63 | 12.43~4.95 | 12.39~5.04 | 12.41~5.08 |
| Net Dimensions (L/W/H) | 950×400×620 mm | 950×400×620 mm | 1110×480×870 mm | 1110×480×870 mm | 1110×480×1220 mm | 1110×480×1220 mm |
Brochure
Astral Pool Heat Pump Catalogue
Manual
Viron Inverter Heat Pump Manual
Sizing Guide
Click On download Calculator to calculate the appropriate heat pump for your pool. The Calculator opens an excel sheet where pool location and size details can be entered. The calculator will provide running costs and advise which model is best for you.
