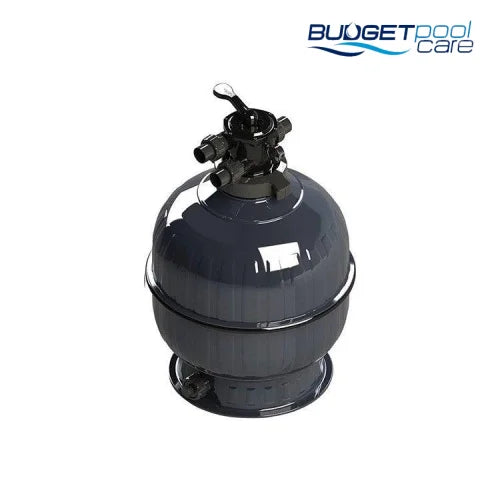

Astral Cantabric Sand Filters
Astral CA sand filters are Australian-made using high precision injection moulding resulting in superior strength and lightweight. The CA Media filter range provides the best value for the money filter range and is available in 4 sizes to suit most pools.
Features
- 6+1 multiport valve (Backwash, Rinse, Recirculate, Waste, Closed positions, Easy to Drain)
- Available with side mount or top mount
- Weather resistant body
- Pressure gauge to control filter back washing
- 10 Year warranty on the tank an 12 month warranty on valve and internals
- Premium 10 lateral under drain designed for low pressure loss
- Unique under drain ensures effective backwashing in less time saving water
- Fully injection moulded for high strength and longest life
- Suitable for Sand, Viron Glass and other filter media
- Unique lock ring secures valve in just seconds
For more information please visit: http://www.astralpool.com.au/
Advice
Talk to the team at budgetpoolcare.com.au about your requirements; we help with replacement sand filters or sand filters for new pools. Please call us on 1300 766 522 or Contact us, and we will happily answer any questions on sand filters.
Installation
Need installation? Call us on 1300 766 522, and we will arrange the installation of sand filters in most areas across Australia.
Manual
Astral Pool Cantrabric CA Sand Filter Manual
Brochure
Astral Pool Cantrabric CA Sand Filter Brochure
Specifications
| Model No. | CA280 | CA300 | CA340 | CA400 |
|---|---|---|---|---|
| Pool Coverage | ||||
| 6 hour turnover | 100,800 ltrs | 108,000 ltrs | 115,200 ltrs | 144,000 ltrs |
| 8 hour turnover | 134,400 ltrs | 144,000 ltrs | 153,600 ltrs | 192,000 ltrs |
| Equipment | ||||
| Tank diameter | 665mm | 665mm | 742mm | 816mm |
| Width (with valve installed) | 66.5cm | 66.5cm | 74.2cm | 81.6cm |
| Height (with valve installed) | 106cm | 107.6cm | 107.6cm | 123.3cm |
| Viron Active Fine | 75kg | 75kg | 90kg | 125kg |
| Viron active course | 45kg | 45kg | 60kg | 75kg |
| Sand required | 120kg | 120kg | 150kg | 200kg |
| Port size | 40mm | 50mm | 50mm | 50mm |
| Filter area | 0.30 sq m | 0.30 sq m | 0.30 sq m | 0.30 sq m |
| Shipping weight (with valve installed) | 20kg | 21kg | 22kg | 28kg |
