EvoHeat Edge i Space saving Inverter Heat Pump
EvoHeat Edge-i Inverter Heat Pump: The Ultimate Space-Saver Series
Redefining pool and spa heating, the Evo Edge-i Inverter Heat Pump showcases unparalleled innovation. Designed for spaces that demand efficiency without compromising on space, it is perfect for tight installation locations and wall-mounting.
Why the Evo Edge-i is a Game-Changer:
-

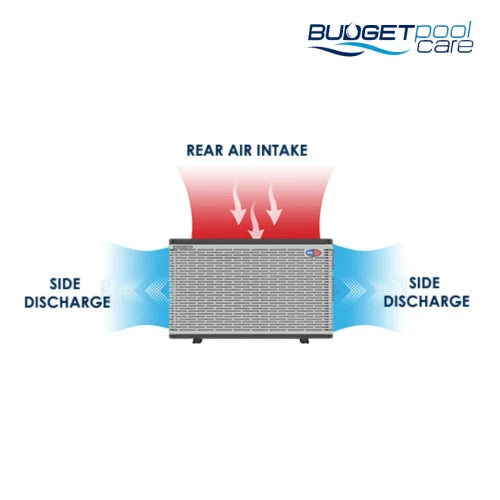

Compact Design for Tight Spaces: With its state-of-the-art side air discharge and rear air intake, bid farewell to installation woes. The Evo Edge-i is made for modern homes that need to save on space.
-
Exceptional Performance & Savings: Evo Edge-i doesn’t just bring warmth, it brings top-notch efficiency. Boasting a C.O.P. of up to 12.19+, it promises exceptional performance and lowered operating costs. Pair it up with a pool blanket or your solar PV to experience the zenith of energy-efficient pool heating.
-
Advanced Inverter Technology: Loaded with the latest stepless DC inverter tech – from compressors to fans and control systems, the Edge-i self-adjusts power consumption to meet your pool’s heating needs, ensuring quicker heating and maintaining desired temperatures, all while saving on energy costs.
-

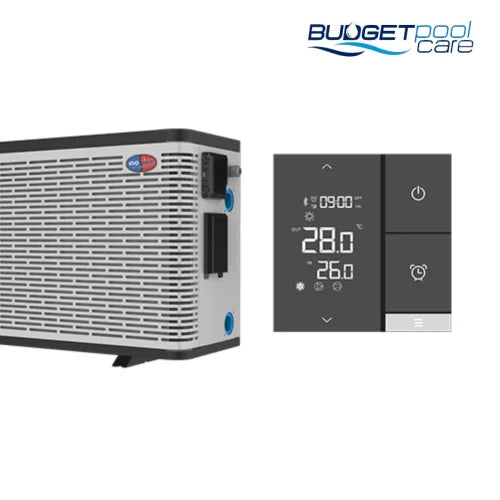

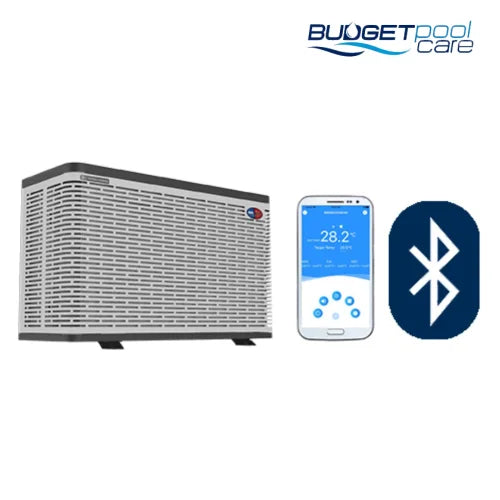

Total Control, Anytime, Anywhere: With its user-friendly controller, maintain water temperatures with precision. Plus, with the smart Wi-Fi and Bluetooth app available for both iOS and Android, you have the power to monitor and adjust settings from the palm of your hand, anytime, anywhere.
-
Silent Yet Powerful: Our low-noise fan blades combined with a special silent mode guarantee a quiet operation, making late-night swims peaceful for both you and your neighbours.
-
All-Weather Resilience: Whether it’s heating or cooling you need, the Edge-i series is prepared. It even has an automatic defrost feature ensuring efficient operation in temperatures as low as -7C.
-
Durability & Efficiency Hand-in-Hand: The titanium thread heat exchanger ensures optimal heat transfer and is resistant to corrosion. This means up to 30% more efficiency than standard exchangers. Coupled with Electronic Expansion Valve 2 Technology and the latest bluetec hydrophilic coating for corrosion protection, the Evo Edge-i is engineered to serve you efficiently for years.
Robust Warranty for Peace of Mind: Benefit from an industry-leading warranty package:
- Titanium heat exchanger: 25 years
- Compressor: 5 years
- Parts: 2 years
- Labour: 1 year
Transform your pool or spa experience with the Evo Edge-i, merging compact design with unparalleled efficiency. Invest in innovation today!
Specifications for EvoHeat Edge-i 7:
- Heat output (27C air/26C water): 7.45 kW
- Heat output (15C air/26C water): 5.34 kW
- Cooling output (35C air/30C water): 3.63 kW
Specifications for EvoHeat Edge-i 9:
- Heat output (27C air/26C water): 9.17 kW
- Heat output (15C air/26C water): 6.62 kW
- Cooling output (35C air/30C water): 3.63 kW
Specifications for EvoHeat Edge-i 13:
- Heat output (27C air/26C water): 11.47 kW
- Heat output (15C air/26C water): 8.55 kW
- Cooling output (35C air/30C water): 3.91 kW
Specifications for EvoHeat Edge-i 17:
- Heat output (27C air/26C water): 16.02 kW
- Heat output (15C air/26C water): 11.38 kW
- Cooling output (35C air/30C water): 6.04 kW
Specifications for EvoHeat Edge-i 20:
- Heat output (27C air/26C water): 18.10 kW
- Heat output (15C air/26C water): 13.20 kW
- Cooling output (35C air/30C water): 7.78 kW
SPECIFICATIONS
| MODEL | EDGE-I 7 | EDGE-I 9 | EDGE-I 13 | EDGE-I 17 | EDGE-I 20 | |
|---|---|---|---|---|---|---|
| Heating Output (27C air/26C water) | kW | 7.45 | 9.17 | 11.47 | 16.02 | 18.10 |
| Heating Output (15C air/26C water) | kW | 5.34 | 6.62 | 8.55 | 11.38 | 13.20 |
| Heating Output (10C air/26C water) | kW | 3.63 | 3.63 | 3.91 | 6.04 | 7.78 |
| C.O.P at 27C Air | 11.24~6.07 | 11.24-5.73 | 12.19-5.69 | 12-5.43 | 11.53-6.11 | |
| Consumed Power at 27C Air | kW | 0.29-1.227 | 0.29-1.6 | 0.295-2.016 | 0.55-2.95 | 0.57-2.96 |
| Power Supply | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
| Max Running Current | A | 7 | 9.5 | 10.3 | 14 | 14 |
| Connection Type | 10amp | 10amp | 15amp | Hardwired | Hardwired | |
| Fan Quantity | 1 | 1 | 1 | 1 | 1 | |
| Fan Speed | RPM | 600-800 | 600-800 | 500-900 | 500-800 | 500-850 |
| Noise at 1m | dB(A) | 40-46.5 | 40-46.5 | 43-50 | 43-53 | 39.5-52.5 |
| Noise at 1m (Silent Mode) | dB(A) | 40 | 40 | 43 | 43 | 39.5 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | |
| PVC Water Connection | mm | 40 | 40 | 40 | 40 | 40 |
| Water Flow Volume | L/min | 66.67 | 66.67 | 76.67 | 115 | 128.33 |
| Water Pressure Drop (Max) | kPa | 3.2 | 3.2 | 4 | 7.5 | 8.8 |
| Net Dimensions (LxWxH) | mm | 1034/450/626 | 1034/450/626 | 1034/450/626 | 1040/490/768 | 1171/510/858 |
| Net Weight | kg | 67 | 67 | 67 | 87 | 98 |
