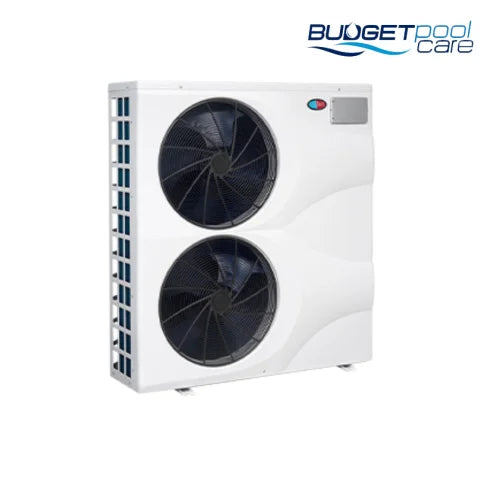

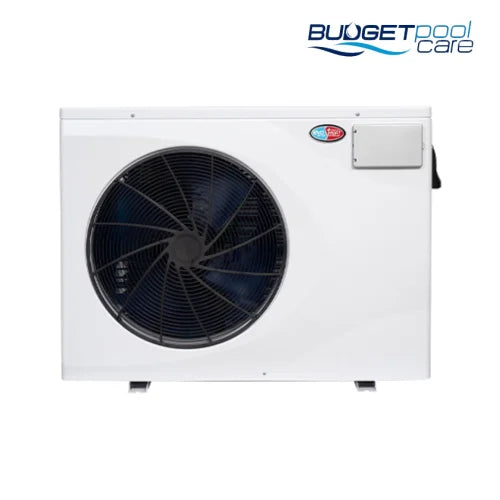

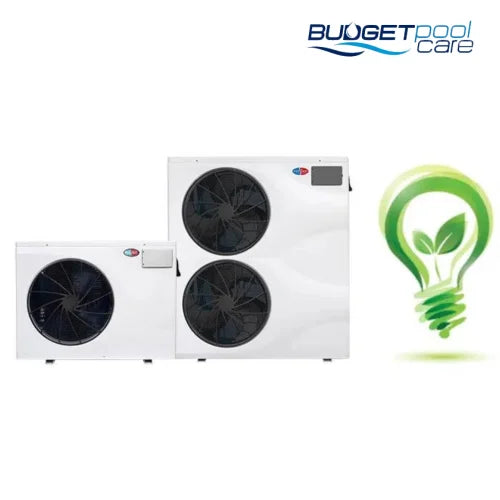

EvoHeat Force-i Inverter Pool Heater
EvoHeat Force-i: The Pinnacle of Pool & Spa Heating
Dive into the future of pool and spa heating with the groundbreaking Evo Force-i series heat pump. As our flagship high-performance model, it promises a swimming experience unlike any other. Designed to provide year-round pool heating, the Force-i is a testament to unmatched efficiency and reduced running costs.
Here's Why Evo Force-i Stands Out:
-
Award-Winning Efficiency: With the latest stepless full DC inverter compressors, fans, and control systems, the Force-i seamlessly adjusts to your pool's requirements. This results in faster, more efficient heating, securing its place as the most energy-efficient and eco-friendly year-round pool heater on the market.
-
Impressive Performance: A staggering C.O.P. of up to 16.28+ sets the Force-i series apart. When paired with a pool blanket and/or solar PV, you're looking at the zenith of energy-efficient pool heating.
-

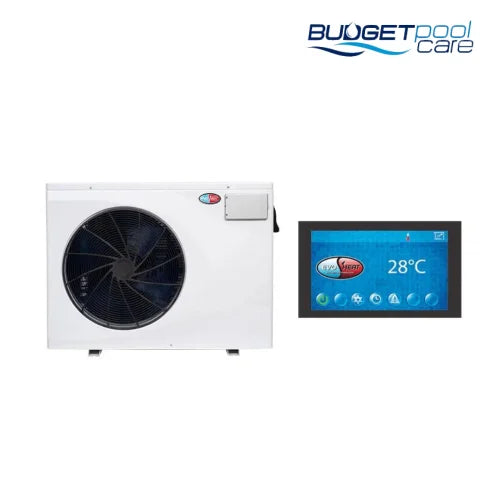

Precision Control: Boasting a state-of-the-art colour LCD touchscreen controller, the Force-i lets you fine-tune your water temperature down to 0.1 of a degree, ensuring optimized heater performance.
-
Remote Accessibility: The innovative Wi-Fi control app, available for both iOS and Android, allows you to manage your Force-i heat pump from anywhere, anytime.
-
Dual Mode Excellence: Be it heating or cooling, the Force-i guarantees that your pool remains at your preferred temperature, always.
-
Silent Operator: Designed with tranquillity in mind, the Force-i ensures its powerful operations are whisper-quiet, keeping both you and your neighbours at peace.
-
Advanced Features:
- Automatic Defrost: Even in bone-chilling temperatures as low as -15C, the Force-i continues its efficient operation, thanks to its advanced defrosting system.
- Titanium Heat Exchanger: With corrosion resistance at its core, this exchanger boosts heat transfer efficiency by up to 30% when compared to conventional models.
- Electronic Expansion Valve 2 Technology: Representing the gold standard in refrigeration control systems, this technology offers improved efficiency, raising the C.O.P. by up to 20% against competing brands.
- Lasting Efficiency: The Bluetec hydrophilic coating ensures that your heat pump remains efficient for many, many years.
Evo Force-i Warranty: Rest easy knowing the Evo Force-i has your back with its industry-leading warranty:
- 25 years on the titanium heat exchanger
- 5 years on the compressor
- 2 years on parts
- 1 year on labour
Experience Unmatched Comfort: Upgrade to the Force-i series and redefine luxury and efficiency in your pool or spa experience.
Specifications for Evo Force-i 9:
- Heat output (27C air/26C water): 9 kW
- Heat output (15C air/26C water): 7.4 kW
- Cooling output (35C air/30C water): 4.5 kW
- C.O.P. at 27C air: 16.13-6.76
Specifications for Evo Force-i 12:
- Heat output (27C air/26C water): 12 kW
- Heat output (15C air/26C water): 9.7 kW
- Cooling output (35C air/30C water): 6.4 kW
- C.O.P. at 27C air: 16.28-6.79
Specifications for Evo Force-i 17:
- Heat output (27C air/26C water): 17 kW
- Heat output (15C air/26C water): 12.4 kW
- Cooling output (35C air/30C water): 8.6 kW
- C.O.P. at 27C air: 15.71-6.76
Specifications for Evo Force-i 19:
- Heat output (27C air/26C water): 19.5 kW
- Heat output (15C air/26C water): 15.4 kW
- Cooling output (35C air/30C water): 10.5 kW
- C.O.P. at 27C air: 16.16-6.19
Specifications for Evo Force-i 24:
- Heat output (27C air/26C water): 24.2 kW
- Heat output (15C air/26C water): 19.9 kW
- Cooling output (35C air/30C water): 14.2 kW
- C.O.P. at 27C air: 16.11-6.05
Specifications for Evo Force-i 28-3:
- Heat output (27C air/26C water): 28.3 kW
- Heat output (15C air/26C water): 23.3 kW
- Cooling output (35C air/30C water): 16.5 kW
- C.O.P. at 27C air: 16.13-6.10
SPECIFICATIONS
| MODEL | FORCE-I 9 | FORCE-I 12 | FORCE-I 17 | FORCE-I 19 | FORCE-I 24 | FORCE-I 28-3 | |
|---|---|---|---|---|---|---|---|
| Heating capacity | kW | 9 | 12 | 17 | 19.5 | 24.2 | 28.3 |
| Consumed power | kW | 0.33~1.33 | 0.18~1.77 | 0.24~2.52 | 0.28~3.15 | 0.35~4.00 | 0.42~4.64 |
| C.O.P. | 16.13~6.76 | 16.28~6.79 | 15.71~6.76 | 16.16~6.19 | 16.11~6.05 | 16.13~6.10 | |
| Power supply | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | |
| Max current per phase | AMPS | 9.3 | 12.1 | 14.7 | 18.7 | 24.1 | 11.7 per phase |
| Connection type | 10amp | 15amp | hard wired | hard wired | hard wired | hard wired | |
| Fan quantity | 1 | 1 | 1 | 1 | 2 | 2 | |
| Fan speed | RPM | 400-800 | 400-800 | 500-750 | 500-900 | 400-800 | 400-900 |
| Noise at 1M | dB(A) | 40-50 | 42-52 | 44-53 | 46-56 | 46-57 | 48-58 |
| Noise in silence mode at 1M | dB(A) | 40 | 42 | 44 | 45 | 46 | 48 |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 | |
| PVC water connection | mm | 40 | 40 | 40 | 40 | 40 | 40 |
| Water flow volume | L/min | 60 | 80 | 90 | 110 | 150 | 160 |
| Water pressure drop | kPa | 4 | 4.5 | 5 | 6 | 11 | 15 |
| Net dimensions L/W/H | mm | 1046/453/768 | 1046/453/768 | 1161/490/862 | 1161/490/862 | 1161/490/1274 | 1161/490/1274 |
| Net weight | kg | 52 | 58 | 69 | 90 | 111 | 120 |
