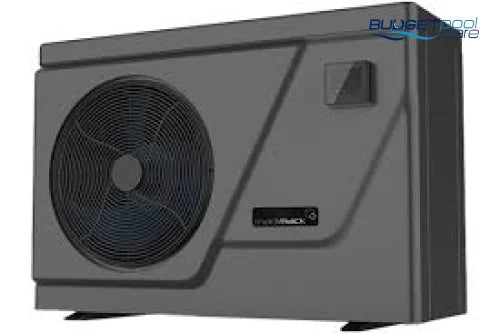

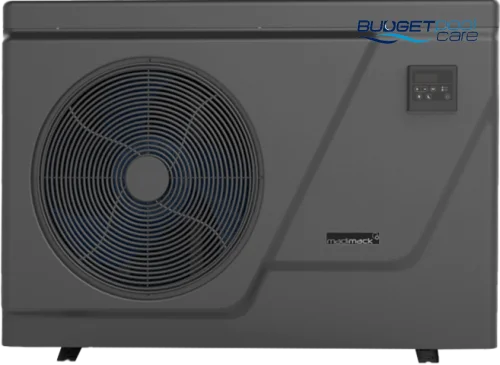

Madimack InverECO 200 20kW Pool Heat Pump
RRP $6,716.00
Built with efficiency and simplicity in mind the quiet, long-lasting and easy to use the Madimack InverECO heat pump is perfect for energy-conscious minds. With low energy and night time mode, it means efficiency can be increased by up to 20%, and with WiFi as standard, you can change your pool temperature and timers from wherever you are. State of the art anti-corrosion ABS casing means you can be sure your pool stays warm season after season no matter where you live. This electric pool heat pump series is ideal for recreational pool & spa owners.
Features:
- Energy efficient with COP up to 11
- Full inverter compressor & inverter fan
- Quieter operation than on/off technology
- Anti-corrosion ABS casing
- Reverse cycle defrost
- Built flow switch & safety devices
- Up to 40 degrees set point temperature
- Easy to use controller
- WiFi as a standard feature
- Titanium heat exchanger with a 25 year warranty
- Front discharge air outlet
- Read Brochure
Specifications:
| Model | EC090 | EC0130 | ECO160 | ECO200 | ECO240 |
|---|---|---|---|---|---|
| PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% | |||||
| Heating capacity (kW) | 9 | 13 | 16 | 20.2 | 24.2 |
| COP Range | 10.5~6.2 | 10.8~6.3 | 10.7~6.2 | 10.9~6.3 | 10.8~6.3 |
| PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% | |||||
| Heating capacity (kW) | 6.5 | 9 | 11 | 14 | 16 |
| COP Range | 6.5~4.2 | 6.2~4.5 | 6.6~4.3 | 6.4~4.3 | 6.6~4.5 |
| TECHNICAL SPECIFICATIONS | |||||
| Operating air temperature(°C) | -5°C~43°C | ||||
| Compressor | Full Stepless DC Compressor | ||||
| Casing | ABS Anti Corrosion Case | ||||
| Heat exchanger | Twisted Titanium Heat Exchanger | ||||
| Power supply | 230V/1Ph/50Hz | ||||
| Electrical connection | 10A plug | 15A plug | Hardwired | ||
| Rated input power (kW) | 0.28~1.55 | 0.41~2.01 | 0.50~2.56 | 0.60~3.26 | 0.72~3.81 |
| Rated input current (A) | 1.21~6.73 | 1.76~8.70 | 2.17~11.12 | 2.61~14.16 | 3.13~16.56 |
| Maximum input current (A) | 8 | 12.5 | 17 | 19.2 | 20 |
| Sound level at 1m dB(A) | 41.6~53.5 | 43.9~54.0 | 46.2~57.3 | 46.3~58.1 | 46.9~58.7 |
| Sound level at 10m dB(A) | 21.6~33.5 | 23.9~34.0 | 26.2~37.3 | 26.3~38.1 | 26.9~38.7 |
| Advised water flow (L/Min) ±20 | 50 | 75 | 90 | 120 | 150 |
| Water connection (mm) | 40 | ||||
| Net weight (kg) | 46 | 49 | 60 | 68 | 68 |
| Net dimension L x W x H (mm) | 903x349x654 | 903x349x654 | 991x349x654 | 991x349x754 | 991x420x757 |
