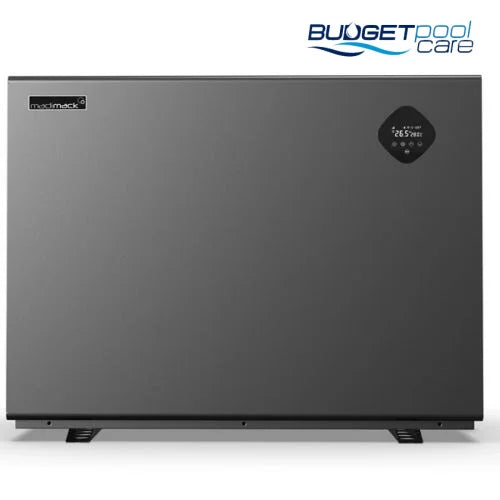

Madimack InverELITE V3 320 32kW Pool Heat Pump
RRP $12,873.00
The Madimack Elite V3 heat pump has been redesigned from the ground up to bring a revolutionised pool heating system to the Australian market. In conjunction with the newest inverter technology the unit delivers better airflow, higher efficiency, quieter operation and performance. The unit exclusively delivers market leading installation requirements, providing space saving options for Australian backyards. Engineered with durability in mind, the Elite V3 operates at optimal levels even in the most corrosive and erosive environments. The Elite V3 sets the standard for other pool heating solutions.
Features:
- Quietest heat pump - Sound is absorbed through the triple insulated compressor compartment & advanced engineering design
- User friendly interface - Smart, efficient & powerful with intuitive commissioning and monitoring built into a smart diamond display
- Centri-Flow technology - the elite V3 has the only true side air discharge with centrifugal fan technology
- Highest efficiency levels - achieves market leading COP16.4
- Unique side ventilation - dramatically reduced ventilation due to its finely engineered system
- Great warranty - 25 years on titanium heat exchanger, 10 years on compressor, 5 years on parts
- Read Brochure
Specifications:
| Model | ESV3-110 | ESV3-140 | ESV3-170 | ESV3-220 | ESV3-270 | ESV3-320 | ESV3-400 |
|---|---|---|---|---|---|---|---|
| PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% | |||||||
| Heating capacity (kW) | 11.5 | 14 | 17 | 22.5 | 26.9 | 31.8 | 40.5 |
| COP range | 16.0~7.3 | 16.0~7.4 | 16.1~7.1 | 16.2~7.1 | 16.1~7.3 | 16.4~7.2 | 16.0~7.0 |
| PERFORMANCE CONDITION:Air 15°C/ Water 26°C/ Humid. 70% | |||||||
| Heating capacity (kW) | 7.7 | 9.3 | 11.5 | 15.0 | 18.0 | 21.8 | 29.0 |
| COP range | 7.5~5.0 | 7.6~5.1 | 7.8~5.0 | 8.2~5.1 | 7.9~5.1 | 8.0~5.2 | 8.3~5.1 |
| PERFORMANCE CONDITION:Air 35°C/ Water 26°C/ Humid. 70% | |||||||
| Cooling Capacity (kW) | 4.6 | 5.6 | 6.5 | 8.1 | 10.2 | 12.2 | 15.0 |
| TECHNICAL SPECIFICATIONS | |||||||
| Operating air temperature(°C) | -15 ~ 43 | ||||||
| Compressor | Twin-Rotary Mitsubishi DC Compressor | ||||||
| Heat exchanger | Twisted Titanium Heat Exchanger | ||||||
| Casing | Marine Grade Aluminium Alloy | ||||||
| Power supply | 230V/1Ph | 400V 3Ph | |||||
| Electrical connection | 10A Plug | 15A Plug | Hardwired | Hardwired | Hardwired | Hardwired | Hardwired |
| Rated input power (kW) | 0.24~1.79 | 0.29~2.16 | 0.36~2.67 | 0.45~3.33 | 0.54~4.0 | 0.59~4.36 | 0.78~5.8 |
| Rated input current (A) | 1.04~7.78 | 1.09~8.34 | 1.57~11.63 | 1.96~14.48 | 2.35~17.39 | 2.56~18.96 | 1.13~8.41 |
| Maximum input current (A) | 9 | 11 | 13 | 16 | 18 | 21 | 10.5 |
| Sound level at 1m dB(A) | 36.3~44.5 | 36.5~45.9 | 39.3~46.7 | 39.5~49.8 | 39.8~50.2 | 40.3~50.8 | 40.6~51.3 |
| Sound level at 10m dB(A) | 16.3~24.5 | 16.5~25.9 | 19.3~26.7 | 19.5~29.8 | 19.8~30.2 | 20.3~30.8 | 20.6~31.3 |
| Advised water flow (L/Min) ±20 | 65 | 80 | 100 | 125 | 150 | 180 | 230 |
| Water connection (mm) | 40 | ||||||
| Net Weight (kg) | 66 | 73 | 75 | 91 | 114 | 136 | 160 |
| Net dimension LxWxH (mm) | 750x504x656 | 750x504x656 | 839x504x656 | 979x504x756 | 1132x514x756 | 1029x512x1107 | 1139x512x1106 |
